Color will vary with alloy. Aluminium with low alloying elements will show practically no color change. Best coating on aluminium for dyeing. Can be dyed practically any color or shade (Black, blue, red, etc.)
images/i-anodise/img_8911-01-mini.png
Process | Specification |
Related Process |
Tank Size (mm)
(L) x (W) x (H) |
Anodizing |
MIL-A-8625  |
Type I
(Class 1 & Class 2) |
2400 x 1200 x 1200
|
Type II
(Class 1 & Class 2) |
2400 x 1200 x 1200
|
Type III
(Class 1 & Class 2) |
1660 x 1300 x 1050 |
Remarks: Please contact us directly for tank size other than the specified. |
images/i-anodise/BG-ATC179.jpg
images/i-anodise/img_8911-01.png
images/i-anodise/ATC2_057-02.png
images/i-anodise/ATC2_055-03.png
Blueing is a passivation process in which steel is partially protected against rush, and is named after the blue-black appearance of the resulting protective finish.
images/i-blueing/img_8828-01-mini.png
Process |
Specification |
Related Process |
Tank Size (mm)
(L) x (W) x (H) |
Blueing |
n.a. |
n.a. |
730 x 450 x 750 |
images/i-blueing/BG-img_8828.jpg
images/i-blueing/img_8828-01.png
images/i-blueing/ATC2_034-02.png
There is a nickel finish for almost any need. Nickel can be deposited soft or hard - dull or bright, depending on process used and conditions employed in plating. Thus hardness can range from 15-500 Vickers. Can be similar to stainless steel in color, or can be a dull gray or light gray (almost white) color. Corrosion resistance is a function of thickness. Has a low coefficient of thermal expansion - is magnetic. All steel parts having a hardness of Rc-40 or greater require a post bake at 375 degrees _- 25 degrees fahrenheit for 3 hours.
images/i-nickel-plating/ATC043-01-mini.png
Process | Specification |
Related Process |
Tank Size (mm)
(L) x (W) x (H) |
Nickel Plating | QQ-N-290 | Jigging |
450 x 730 x 750 |
Barrel |
750 x 840 x 750 |
images/i-nickel-plating/BG-ATC043.jpg
images/i-nickel-plating/ATC043-01.png
Similar to stainless steel in color. Plates uniformly in recesses and cavities (does not build up on edges). Corrosion resistance is good for coating over .001" thickness.
Electroless nickel is used extensively in salvage of mismachines parts. Also, for inside dimensions and irregular shapes (where assembly tolerances need uniformly provided by "electroless" process).
images/hide-en.png
Process | Specification |
Related Process |
Tank Size (mm)
(L) x (W) x (H) |
Electroless Nickel | AMS 2404 | Mid phosphorous EN |
1530 x 760 x 930 |
High phosphorous EN |
1200 x 600 x 1200 |
EN Telfon |
720 x 450 x 700 |
Remarks: Please contact us directly for tank size other than the specified. |
images/hide-bg.jpg
images/en-ATC2_035.png
images/en-ATC2_064.png
images/en-ATC2_047.png
Yellow to orange color depending on proprietary process used. Will range from matte to bright finish depending on basis metal. Good corrosion resistance, and has high tarnish resistance. Provides a low contact resistance, and is a good conductor. Has excellent solderability.
images/i-gold-silver-copper/1010-03-mini.png
Process |
Specification |
Related Process |
Tank Size (mm)
(L) x (W) x (H) |
Gold Plating |
MIL-G-45204 |
Hard Gold |
250 x 400 x 400 |
Soft Gold |
250 x 400 x 400 |
images/i-gold-silver-copper/BG-ATC175.jpg

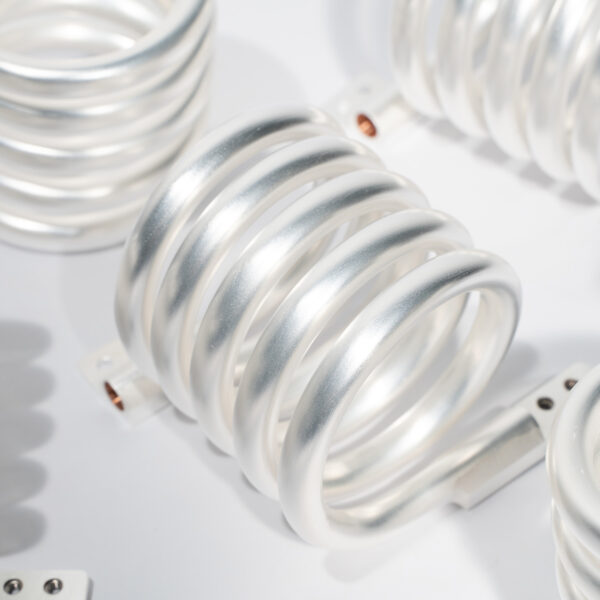

White matte to very bright in appearance. Good corrosion resistance, depend on base metal. Will tarnish easily. Hardeness carries from about 90 Brinnell to about 135 Brinnell depending on process and plating conditions. Solderability is excellent, decreases with age. Best electrical conductor. Has excellent lubricity and smear characteristics for antigalling uses on static seals, bushings, etc.
images/i-gold-silver-copper/IMG_5655web-02-mini.png
Process |
Specification |
Related Process |
Tank Size (mm)
(L) x (W) x (H) |
Silver Plating |
QQ-S-365 |
n.a. |
730 x 450 x 750 |
images/i-gold-silver-copper/BG-ATC175.jpg
Copper in color and matte to a very shiny finish. Good corrosion resistance when used as undercoat. A number of copper processes are available, each designed for a specific purpose. Brightness (to eliminate the need for buffing); High speed (for electroforming); fine grain (to prevent casehardening); etc.
images/i-gold-silver-copper/ATC175-01-mini.png
Process |
Specification |
Related Process |
Tank Size (mm)
(L) x (W) x (H) |
Copper Plating |
MIL-C-14550 |
n.a. |
730 x 450 x 750 |
images/i-gold-silver-copper/BG-ATC175.jpg
A process designed to remove foreign metals from the surface of stainless and corrosion resistant steels and to promote natural tendency to surface to oxide. Does not change the appearance of the base metal. Process purifies surface and therefore improves corrosion resistance.
images/i-passivation/ATC2-049-01-mini.png
Process |
Specification |
Related Process |
Tank Size (mm)
(L) x (W) x (H) |
Passivation |
AMS 2700 |
Type I to VII |
740 x 480 x1040 |
Remarks: Please contact us directly for tank size other than the specified. |
images/i-passivation/ATC132-BG.jpg
images/i-passivation/ATC2-049-01.png
Materials qualified produce coatings that range in color from clear to iridescent yellow or brown. Inspection difficulties may arise with clear coatings because visual inspection does not reveal the presence of a coating.
images/i-conversion/ATC2-066-01-mini.png
Process | Specification |
Related Process |
Tank Size (mm)
(L) x (W) x (H) |
Conversion Coating | MIL-C-5541 |
Type I |
1190 x 550 x 1120 |
Type II |
1190 x 550 x 1120 |
Surtec 650 |
1190 x 550 x 1120 |
Remarks: Please contact us directly for tank size other than the specified. |
images/i-conversion/8948-BG.jpg
images/i-conversion/ATC2-066-01.png
images/i-conversion/ATC2-065-02.png
images/i-conversion/ATC2-052-03.png

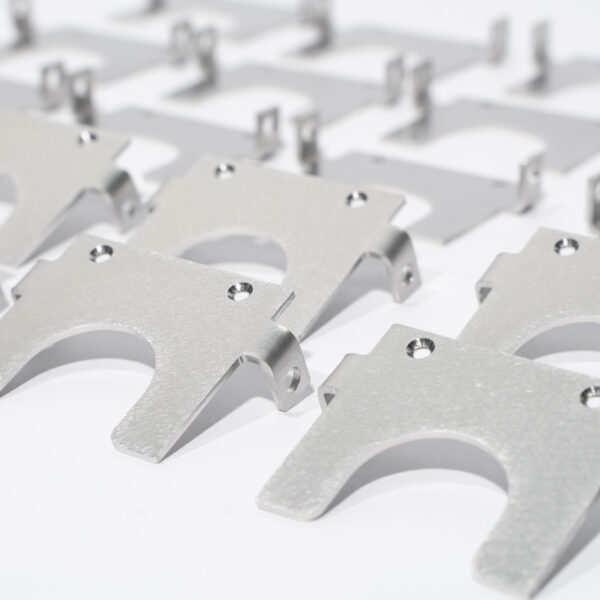

Either a bright or dull finish is acceptable. Bright Zinc Plating closely resembles bright chromium. However, bright zinc does not have the permanence of surface appearance. Zinc coated steel will not rust even when exposed by scratches because of the galvanic protection of the zinc.
On Weathering, zinc turns to a drab color. Zinc should be deposited directly on the base metal (Nickel is permissible undercoat if base metal is a corrosion resisting steel). Parts having a hardness greater than Rc-40 must be given a heat treatment prior to plating. Springs having a hardness over Rc-40 must be given an after plating baking of 375 degrees to 25 degrees fahrenheit for 3 hours.
images/i-zinc-plating/ATC2_062-01-mini.png
Process | Specification |
Related Process |
Tank Size (mm)
(L) x (W) x (H) |
Zinc Plating | ASTM-B633 | Manual
(Blue/Yellow/Black) |
2300 x 800 x 1500 |
Auto
(Blue/Yellow) |
2100 x 1500 x 1200 |
images/i-zinc-plating/BG-ATC143.jpg
images/i-zinc-plating/ATC2_062-01.png
images/i-zinc-plating/ATC2_063-02.png
images/i-zinc-plating/deco031-03.png
With our vast experience and modern facilities, ATC can support various of surface finishing process such as anodizing, conversion coating, passivation and electroless nickel provide for thorough surface protection for aerospace.
images/i-aerospace/ATC2-036-01-mini.png" width="200" height="138"
Process |
Specification |
Related Process |
Tank Size (mm)
(L) x (W) x (H) |
Anodizing | MIL-A-8625 | Type I
(Class 1 & Class 2) |
2400 x 1200 x 1200
|
Type II
(Class 1 & Class 2) |
2400 x 1200 x 1200 |
Type III
(Class 1 & Class 2) |
1660 x 1300 x 1050 |
Conversion Coating | MIL-C-5541 | Type I |
1190 x 550 x 1120 |
Type II |
1190 x 550 x 1120 |
Surtec 650 |
1190 x 550 x 1120 |
Passivation |
AMS 2700 |
Type I to VII |
740 x 480 x1040 |
Electroless Nickel | AMS 2404 | Mid phosphorous EN |
1530 x 760 x 930 |
High phosphorous EN |
1200 x 600 x 1200 |
EN Telfon |
720 x 450 x 700 |
Spray Painting |
MIL-PRF-23377 |
High Build Tar Free Epoxy Coating
High Solids Aliphatic/Aromatic Polyester Polyurethane Coating
Polyurethane Coating
ESD Paint |
Various Part Size |
images/i-aerospace/ATC176-BG.jpg
images/i-aerospace/ATC2-036-01.png
images/i-aerospace/ATC2-038-02.png
images/i-aerospace/ATC2-039-03.png

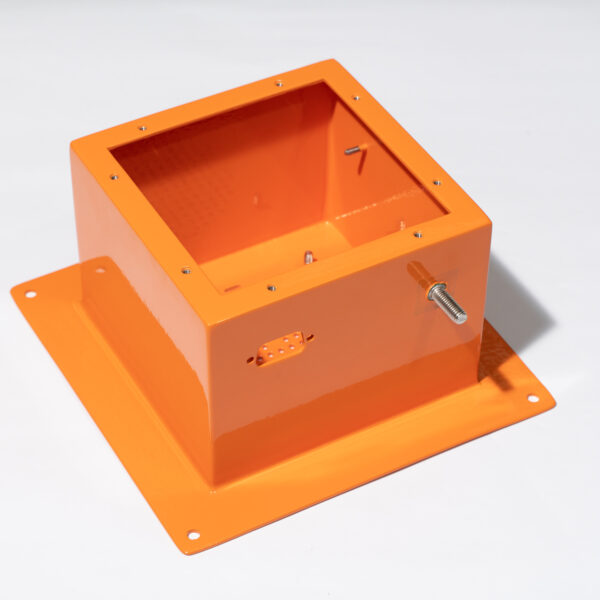

Spray painting is a painting technique where a device sprays a coating (paint, ink, varnish, etc.) through the air onto the surface. The most common types employ compressed gas - usually air - to atomise and direct the paint particles.
images/i-spray-paint/ATC2-010-01-mini.png
Process |
Specification |
Related Process |
Remarks |
Spray Painting |
MIL-PRF-23377 |
High Build Tar Free Epoxy Coating
High Solids Aliphatic/Aromatic Polyester Polyurethane Coating
Polyurethane Coating
ESD Paint |
Various Part Size |
images/i-spray-paint/ATC2-094-BG.png
images/i-spray-paint/ATC2-009-02.png
images/i-spray-paint/ATC2-010-01.png
images/i-spray-paint/ATC2-007-03.png

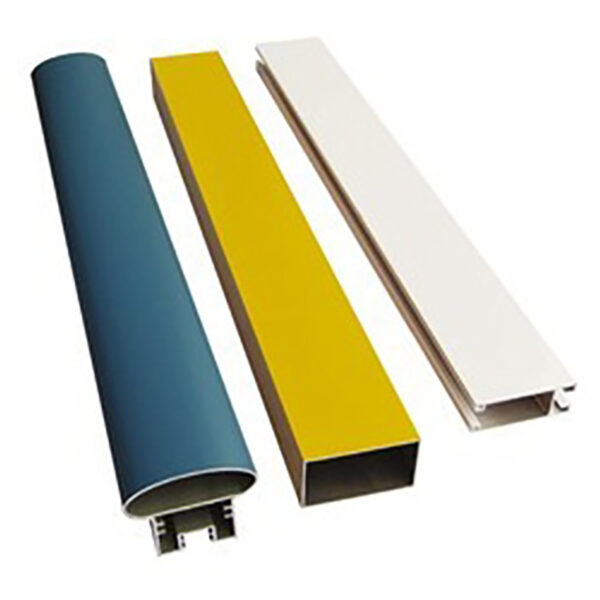

Powder coating is a type of coating that is applied as a free-flowing, dry powder. The main difference between a conventional liquid paint and a powder coating is that the powder coating does not require a solvent to keep the binder and filler parts in a liquid suspension form.
images/i-powder-coat/ATC2-021-01-mini.png
Process |
Specification |
Related Process |
Remarks |
Powder Coat |
MIL-C-24712 |
Epoxy Polyester Hybrid Powder Coating
Epoxy Powder Coating
Polyester Polyurethane Powder Coating
Polyester TGIC Powder Coating
Thermosetting Powder Coating |
Various Part Size |
images/i-powder-coat/ATC2-094-BG.png
images/i-powder-coat/ATC2-021-01.png
images/i-powder-coat/ATC2-026-02.png
images/i-powder-coat/ATC2-005-03.png
images/i-powder-coat/ATC2-002-04.png
A coating for medium and low alloy steels. Gray to brack in color. Type M is more resistant than Type Z to alkaline enviroments. Type M can be used up to 250 F. Provides moderate corrosion resistant and prevents wear. Type Z can be used up tp 200 F to prevent galling in extrusion and depp drawing. Class 2 is good for corrosion resistance.
images/i-others/ATC2_069-01-mini.png
Process | Specification |
Related Process |
Tank Size (mm)
(L) x (W) x (H) |
Phosphating | As per customer specification | Type M |
730 x 300 x 100 |
Type Z |
3100 x 380 x 800 |
images/i-spray-paint/ATC2-094-BG.png
images/i-others/ATC2_069-01.png
Excellent hardness, wear resistant and erosion resistance. Has low coefficient of friction, and is resistant to heat. In addition to above properties, can be rendered porous for lubrication purposes
images/i-nickel-chrome/photo01-mini.png
Process | Specification |
Related Process |
Tank Size (mm)
(L) x (W) x (H) |
Chrome |
QQ-C-320 |
Flash Chrome |
740 x 480 x 100 |
Nickel Chrome |
3660 x 1300 x 1200 |
Hard Chrome |
740 x 480 x 1000 |
Remarks: Please contact us directly for tank size other than the specified. |
images/i-spray-paint/ATC2-094-BG.png
images/i-nickel-chrome/photo01.png
images/i-nickel-chrome/photo02.png
Optical products require very tight tolerences for the surface coating, whether if be plating, anodizing or painting. These coating serve a variety of function such as matt finished, color tone tolerence, cosmetic, texture and coating thickness. The coating are often critical to the function and performance of the products. ATC is a specialist in customized lines for tight tolerance anodizing, blueing, plating and painting in high production.
images/im-optical/ATC2-034-01-mini.png
Process | Specification |
Related Process |
Tank Size (mm)
(L) x (W) x (H) |
Anodizing | MIL-A-8625 | Type I
(Class 1 & Class 2) |
2400 x 1200 x 1200
|
Type II
(Class 1 & Class 2) |
2400 x 1200 x 1200 |
Type III
(Class 1 & Class 2) |
1660 x 1300 x 1050 |
Blueing |
n.a. |
n.a. |
730 x 450 x 750 |
images/i-spray-paint/ATC2-094-BG.png
images/im-optical/ATC2-034-01.png
images/im-optical/ATC2_056-02.png
images/im-optical/ATC2_054-03.png
We offer a wide variety of surface finishing to meet customer perfomance or cosmetic needs. Many finishes can be applied to all bare material which is used in semiconductor industry such as wafer products, electronics, telecommunication devices and computing.
images/im-semi-conductor/ATC2-010-01-mini.png
Process | Specification | Tank Size (cm) |
All | (Refer to Individual Processes) | (Refer to Individual Processes) |
images/i-spray-paint/ATC2-094-BG.png
images/im-semi-conductor/ATC2-010-01.png
images/im-semi-conductor/ATC2-061-02.png
images/im-semi-conductor/ATC2-059-03.png
We also focused on plating of small to medium sized parts for technical and perfomance oriented application in medical devices and life science.
images/im-medical-tech/ATC2-067-01-mini.png
Process | Specification |
Related Process |
Tank Size (mm)
(L) x (W) x (H) |
Zinc Plating | ASTM-B633 | Manual
(Blue/Yellow/Black) |
2300 x 800 x 1500 |
Auto
(Blue/Yellow) |
2100 x 1500 x 1200 |
Electroless Nickel | AMS 2404 | Mid phosphorous EN |
1530 x 760 x 930 |
High phosphorous EN |
1200 x 600 x 1200 |
EN Telfon |
720 x 450 x 700 |
Anodizing | MIL-A-8625 | Type I
(Class 1 & Class 2) |
2400 x 1200 x 1200
|
Type II
(Class 1 & Class 2) |
2400 x 1200 x 1200 |
Type III
(Class 1 & Class 2) |
1660 x 1300 x 1050 |
Conversion Coating | MIL-C-5541 |
Type I |
1190 x 550 x 1120 |
Type II |
1190 x 550 x 1120 |
Surtec 650 |
1190 x 550 x 1120 |
images/i-spray-paint/ATC2-094-BG.png
images/im-medical-tech/ATC2-067-01.png
images/im-medical-tech/en-ATC2_047.png
ATC has in house chemical testing laboratory to control, monitor and maintain the chemical and DI water used in production floor. The laboratary is also equipped with type of testing instrument capable of doing in house periodical testing base on the plating specification requirement.
images/ie-lab/ATC106-01-mini.png
images/i-spray-paint/ATC2-094-BG.png
images/ie-lab/ATC106-01.png
images/ie-lab/ATC2_084-02.png
Various size of oven available for baking and curing purpose after coating and plating process. Extra large size oven can up to (L) 18 ft, (w) 10 ft, (H) 10 ft.
Powder Coating Oven Features
Powder-specific design, custom sizes configurations available
Modular design enables on-site customization with no additional costs
Double 20 gauge panels--wall panels are bolted together for optimal fit
Easy to access floor-mounted heat system and exhaust system standard
Available in pre-heat, drying, curing, or multi-function designs
Adaptable for use with cart track, specialized racks, etc.
images/ie-oven/ATC044-01-mini.png
images/i-spray-paint/ATC2-094-BG.png
images/ie-oven/ATC044-01.png
images/ie-oven/IMG2996-02.png
ATC powder coating offers many advantages. Those advantages start with appropriate pretreatment, continue with careful powder coating, and finish with thermal curing. With our facilities and skillfull workforce, we provide the highest quality coating services while striving for continous improvements.
images/ie-spray-powder-booth/ATC2_093-01-mini.png
images/i-spray-paint/ATC2-094-BG.png
images/ie-spray-powder-booth/ATC2_093-01.png
images/ie-spray-powder-booth/ATC2_090-02.png
ATC apply liquid paint to a variety of products and substrates including automotive component, heavy industrial equipment, consumer electronics products, requiring special colors, and thickness. We have equipment like liquid painting booth and trained staff to clean and apply the pre-treatment at the start of the process. Perform the correct curing or drying cycle at the end of the process. We handle a wide variety of part substrates and part sizes, typically ranging from 1 inch to 20 feets, by using spray booth.
images/ie-spray-paint-booth/ATC2_092-01-mini.png
images/i-spray-paint/ATC2-094-BG.png
images/ie-spray-paint-booth/ATC2_092-01.png
images/ie-spray-paint-booth/ATC2_091-02.png
Zinc is a popular coating for steel as it offers good corrosion resistance at an economical price. An expertise in zinc and zinc alloy electroplating, ATC plating commitment is to bringing quality metal finishing to their customers.
images/ie-auto-line/DSC_7957-01-mini.png
images/i-spray-paint/ATC2-094-BG.png
images/ie-auto-line/DSC_7957-01.png
Controlled environment is refers to an enclosed low dust environment like class 1000 clean room where the temperature is controlled within 19 - 25 degree C and with relative humidity not exceeding 60%.
images/ie-clean-room/ATC2_130-01-mini.png
images/i-spray-paint/ATC2-094-BG.png
images/ie-clean-room/ATC2_122-02.png
Special cleaning process refer to all sorts of parts that have undergone a special cleaning such as ultrasonic cleaning, ultra clean, etc to remove foreign residue from the part surface. This category of part is typically handle within a controlled environment.
images/i-special-cleaning/020770-01-mini.png
Process |
Specification |
Related Process |
Tank Size (mm)
(L) x (W) x (H) |
Special Cleaning |
As per customer spec |
n.a. |
740 x 480 x 1040 |
images/i-spray-paint/ATC2-094-BG.png
images/i-special-cleaning/020770-01.png
Electropolishing is often referred to as a "reverse plating" process. Electrochemical in nature, electropolishing uses a combination of rectified current and a blended chemical electrolyte bath to remove flaws from the surface of a metal part.
images/i-electropolish/020806-01-mini.png
Process |
Specification |
Related Process |
Tank Size (mm)
(L) x (W) x (H) |
Electropolish |
n.a. |
n.a. |
3000 x 1500 x 1500 |
images/i-spray-paint/ATC2-094-BG.png
images/i-electropolish/020806-01.png
We provide electroplating service of silver, copper, zinc and as well as electroless nickel for the oil and gas industry.
images/i-oil-and-gas/photo01-mini.png
Process |
Specification |
Related Process |
Tank Size (mm)
(L) x (W) x (H) |
Silver Plating |
QQ-S-365 |
n.a. |
730 x 450 x 750 |
Copper Plating |
MIL-C-14550 |
n.a. |
730 x 450 x 750 |
Zinc Plating | ASTM-B633 | Manual
(Blue/Yellow/Black) |
2300 x 800 x 1500 |
Auto
(Blue/Yellow) |
2100 x 1500 x 1200 |
Electroless Nickel | AMS 2404 | Mid phosphorous EN |
1530 x 760 x 930 |
High phosphorous EN |
1200 x 600 x 1200 |
EN Telfon |
720 x 450 x 700 |
Phosphating | As per customer specification | Type M |
730 x 300 x 100 |
Type Z |
3100 x 380 x 800 |
Chrome |
QQ-C-320 |
Hard Chrome |
740 x 480 x 1000 |
Xylan Coat |
n.a. |
n.a. |
n.a. |
images/i-spray-paint/ATC2-094-BG.png
images/i-oil-and-gas/photo01.png
